LMI-CCD Series Semiconducter Cooling C-mount USB2.0 CCD Cameras

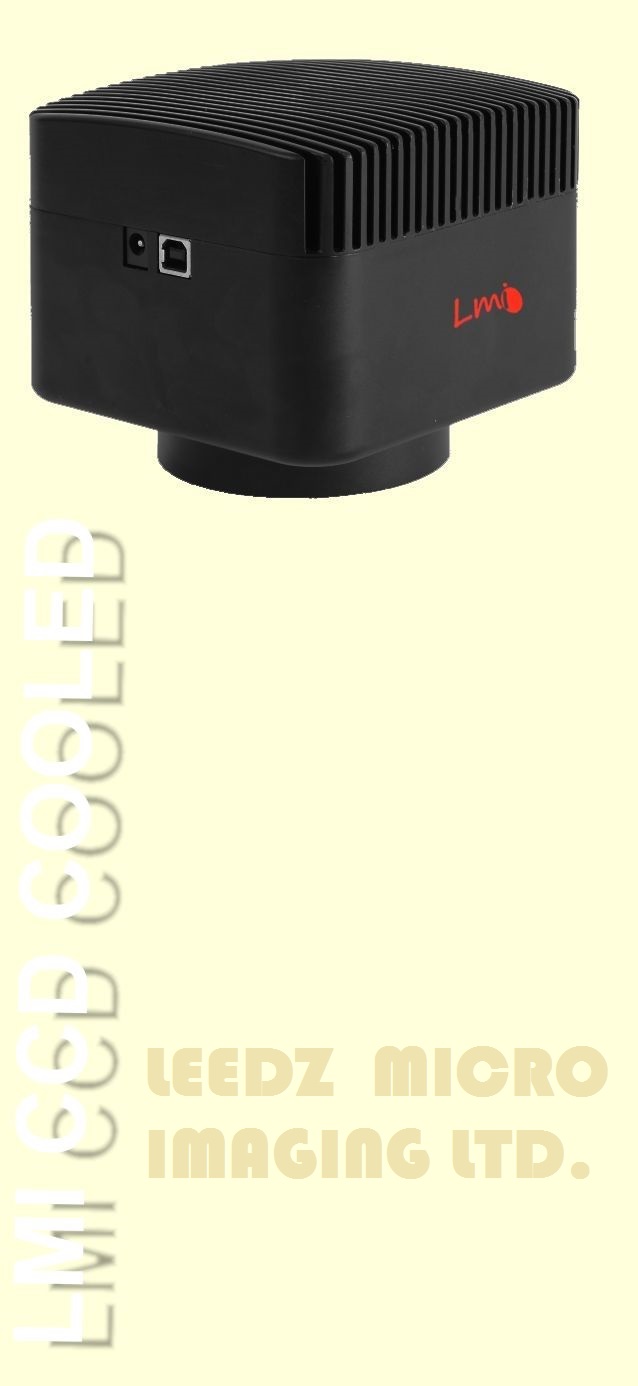

LMI-CCD camera adopts semiconductor cooling peltier chip technique to keep Sony Exview HAD or HAD CCD sensor (The image-picking device) at low temperature. This will greatly increase the signal to noise ratio and decrease the image noise. Besides, integrated heat pipe-heat sink technique is used to transfer the heat to the camera housing fins. No fan is needed to keep the camera from vibration. USB2.0 is used as the data transfer interface. LMI-CCD comes with advanced video & image processing application; Providing Windows/Linux/OSX multiple platform SDK; Native C/C++, C#/VB.NET, DirectShow, Twain Control API; The LMI-CCD can be widely used in low light environment and microscope fluorescence image capture and anaysis.

MODEL	Sensor	Sensor Size	Pixel (um)	FPS/Resolution	Binning	Exposure
MCD-500	ICX655AQ(C)	2/3"(9.93X8.70)	3.45X3.45	4.3@2448X2050 10.5@960X720	1X1	0.22ms~60s
MCD-140	ICX285AQ(C)	2/3"(10.2X8.30)	6.45X6.45	15@1360X1024	1X1	0.12ms~240s
MCD-140M	ICX285AL(M)	2/3"(10.2X8.30)	6.45X6.455	15@1360X1024	1X1	0.12ms~240s

MODEL

Sensor

Sensor Size

Pixel (um)

FPS/Resolution

Binning

Exposure

MCD-500

ICX655AQ(C)

2/3"(9.93X8.70)

3.45X3.45

4.3@2448X2050

10.5@960X720

1X1

0.22ms~60s

MCD-140

ICX285AQ(C)

2/3"(10.2X8.30)

6.45X6.45

15@1360X1024

1X1

0.12ms~240s

MCD-140M

ICX285AL(M)

2/3"(10.2X8.30)

6.45X6.455

15@1360X1024

1X1

0.12ms~240s

OTHER HARDWARE CONFIGURATION
Spectral Range	380-650nm (with IR-filter)
White Balance	ROI White Balance/ Manual Temp-Tint Adjustment
Color Rendering Technique	Ultra Fine Color Engine
Capture/Control API	Native C/C++, C#/VB.NET, Directshow, Twain, Labview
Recording System	Still Picture and Movie
Cooling System*	TE-Cooled CCD - 20 °C below Ambient Temperature
OPERATING ENVIRONMENT
Operating Temperature	-10℃~ 50℃
Storage Temperature	-20℃~ 60℃
Operating Humidity	30~80%RH
Storage Humidity	10~60%RH
Power Supply	DC 5V over PC USB Port
SOFTWARE ENVIRONMENT
Operating System	Support Microsoft Windows XP / Vista / 7 /8 /10 (32 & 64 bit) OS X (Mac OS X), Linux
PC Requirements	CPU: Equal to Intel Core2 2.8GHz or Higher Memory: 2GB or More,CD-ROM
USB port:	USB2.0 High-speed Port
Display:	17" or Larger

OTHER HARDWARE CONFIGURATION

Spectral Range

380-650nm (with IR-filter)

White Balance

ROI White Balance/ Manual Temp-Tint Adjustment

Color Rendering Technique

Ultra Fine Color Engine

Capture/Control API

Native C/C++, C#/VB.NET, Directshow, Twain, Labview

Recording System

Still Picture and Movie

Cooling System*

TE-Cooled CCD - 20 °C below Ambient Temperature

OPERATING ENVIRONMENT

Operating Temperature

-10℃~ 50℃

Storage Temperature

-20℃~ 60℃

Operating Humidity

30~80%RH

Storage Humidity

10~60%RH

Power Supply

DC 5V over PC USB Port

SOFTWARE ENVIRONMENT

Operating System

Support Microsoft Windows XP / Vista / 7 /8 /10 (32 & 64 bit) OS X (Mac OS X), Linux

PC Requirements

CPU: Equal to Intel Core2 2.8GHz or Higher Memory: 2GB or More,CD-ROM

USB port:

USB2.0 High-speed Port

Display:

17" or Larger
