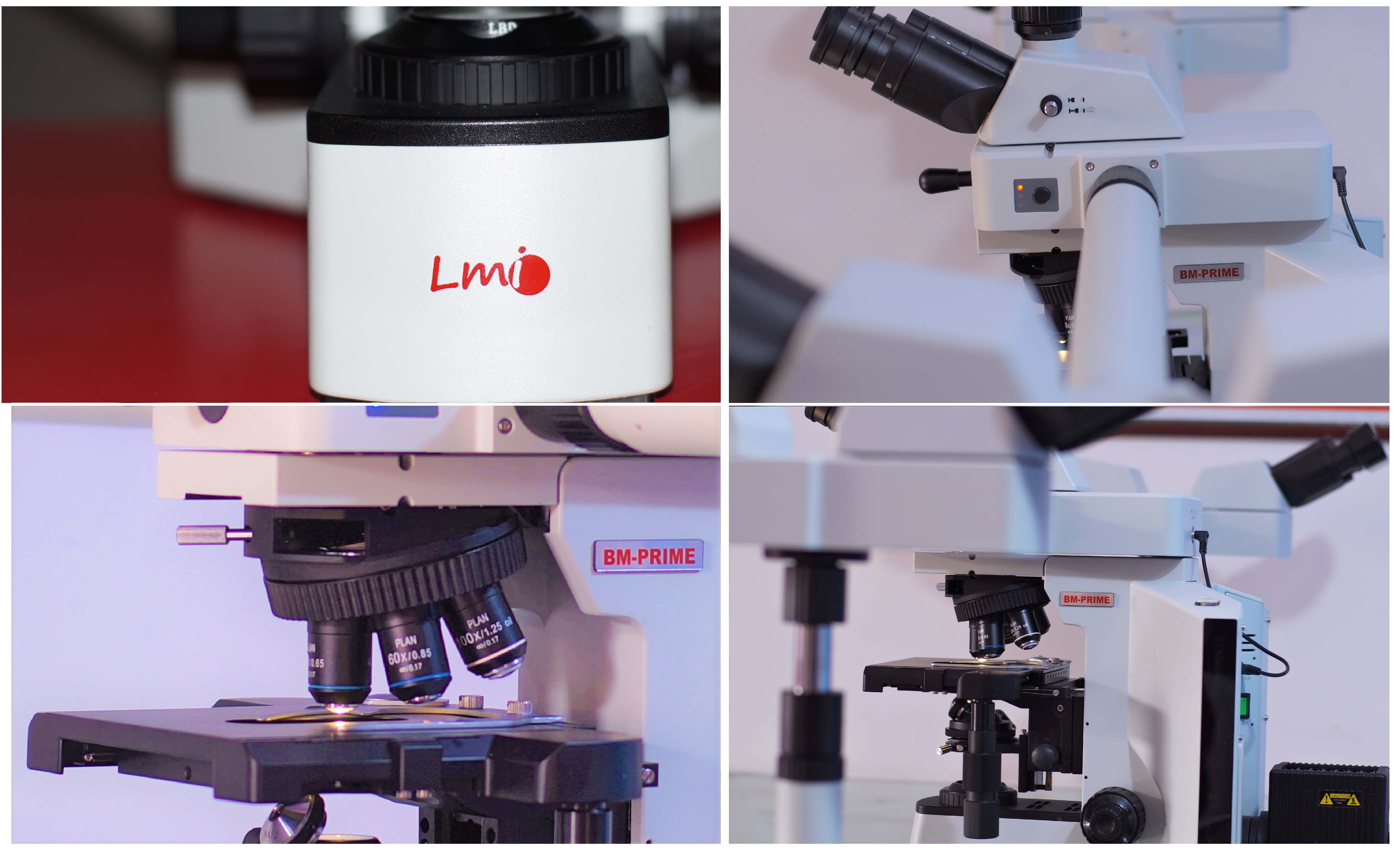

LMI BM-Prime Biological Microscope
3 Way Infinity color corrected optical system, upgraded Koehler illumination system, presents a clear & bright
micro-image under each magnification. New ergonomic design, steady system structure, easy operation,
is suitable for various working environments. "Building blocks" design for combining multiple functions,
fluorescence, phase contrast, DIC Slot, LMI - Polarizing, dark field attachments can be assembled on the
basis of bright field observation. Widely apply to clinical diagnosis, teaching experiment, pathological
test and other micro-fields.High Contrast 5W/9W LED Illumination.BM Prime is also available with high

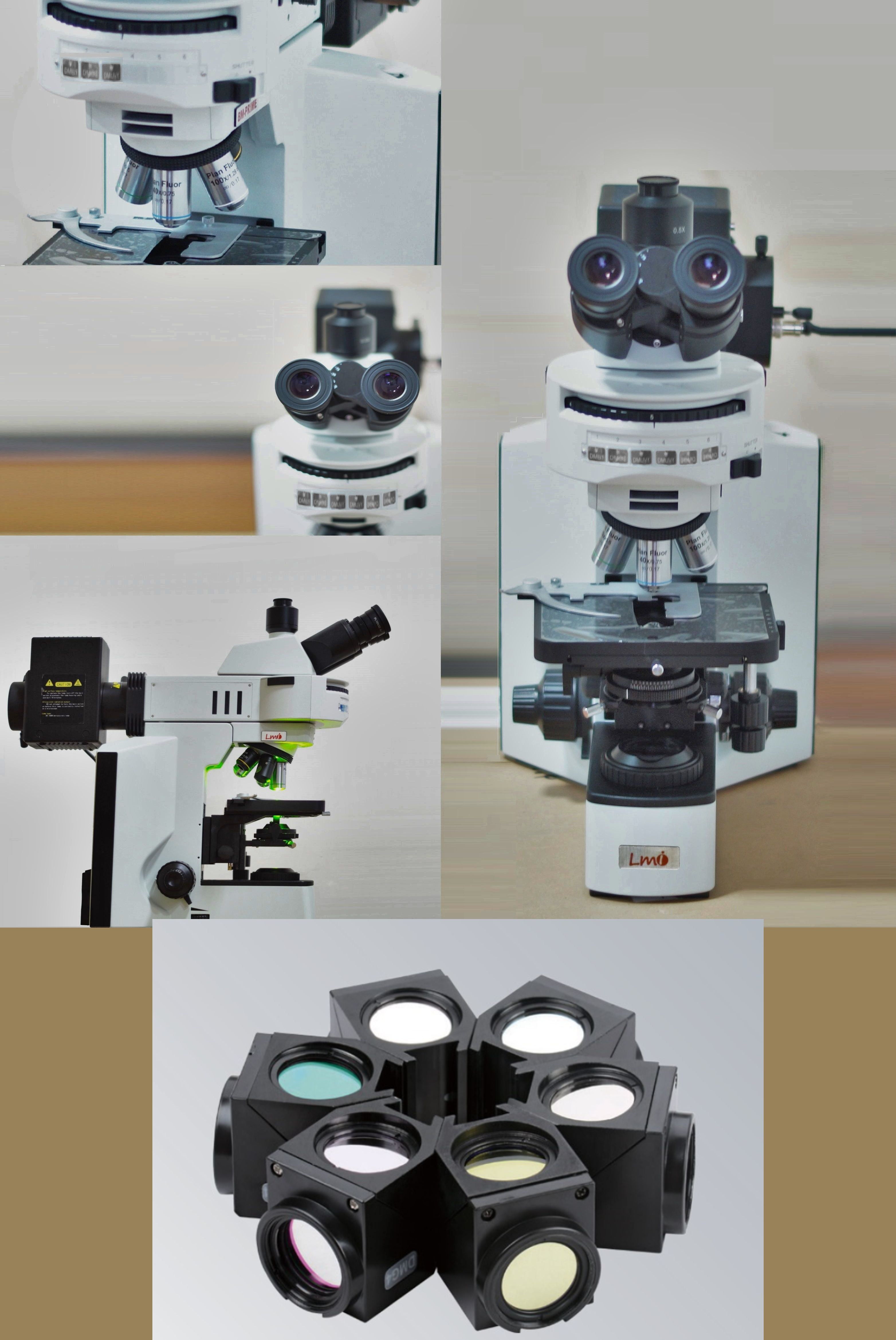

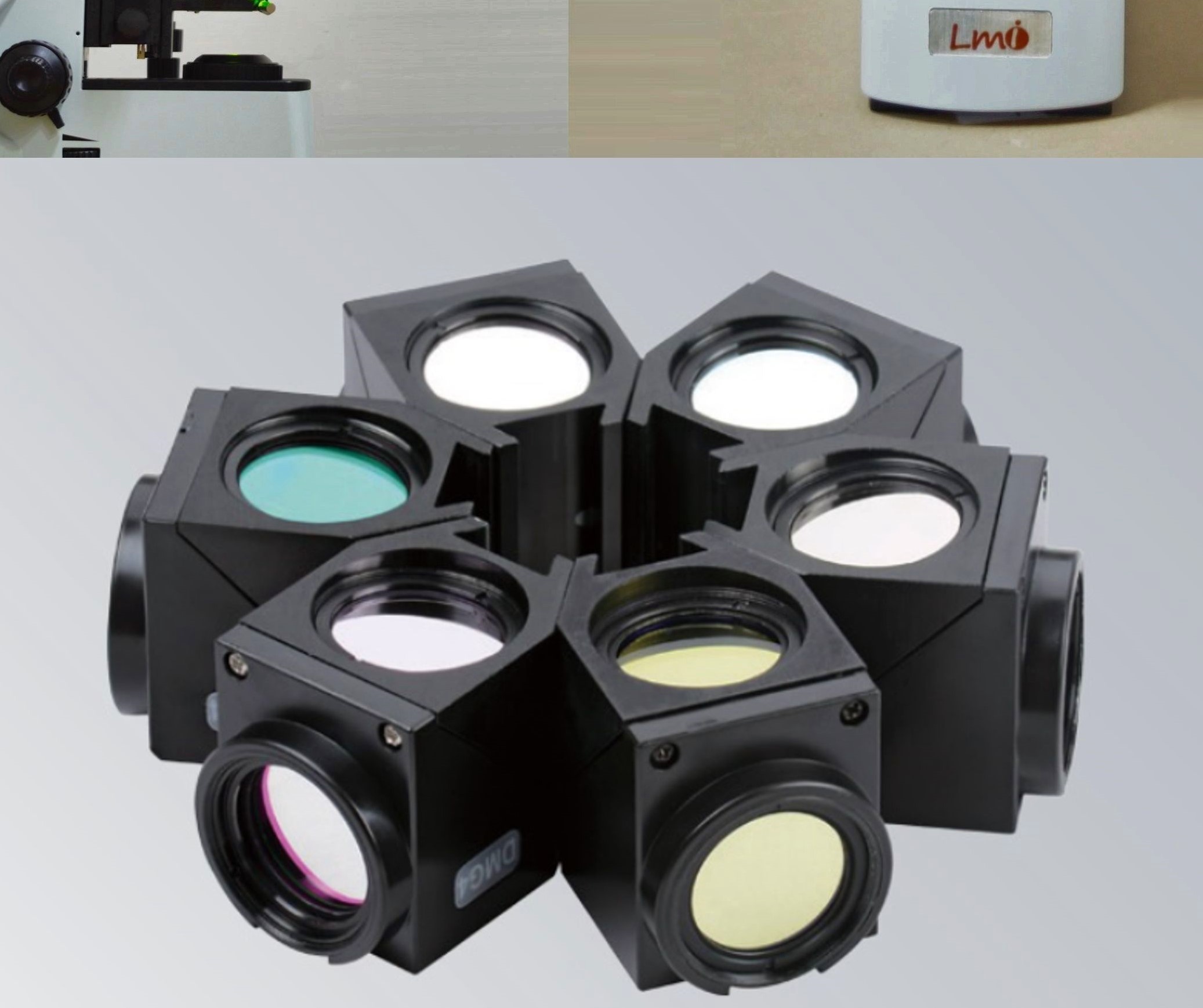

precision motorized facility. Six Position fluorescent filter block is arranged in such a way that makes
operation easy and fast.
| Model | BM-Prime |
|---|---|
| Optical system | Infinity corrected optical system, Anti Fungal |
| Eyepiece |
High eye-point wide field plan eyepiece PL15x16mm |

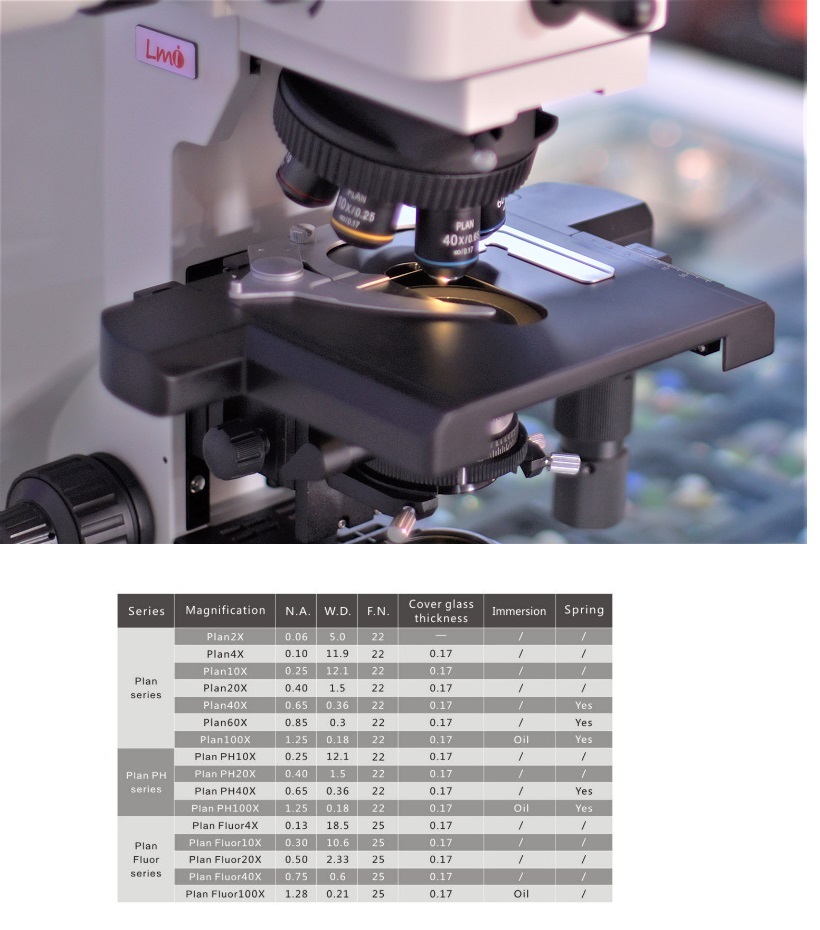

| Objective |
Infinity plan phase contrast objectives (10X,20X,40X,100X) Infinity plan semi-apochromatic fluorescence objectives (4X,10X,20X,40X,100X) |

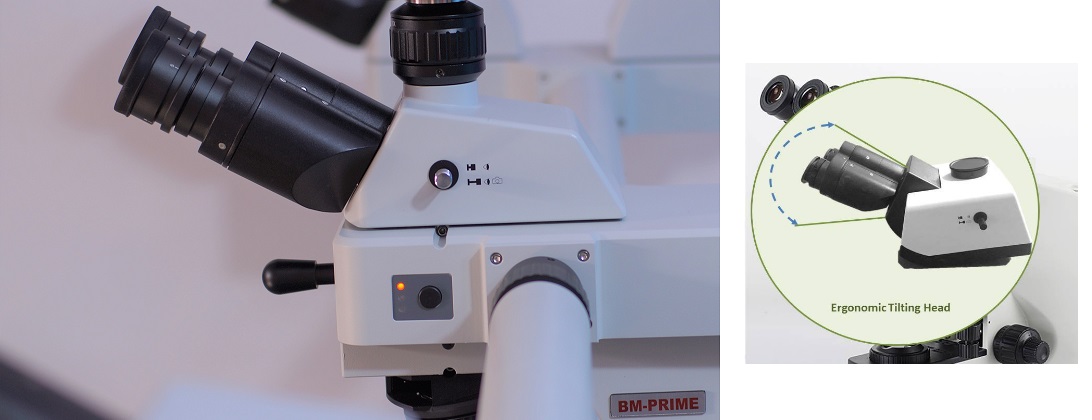

| Viewing head |

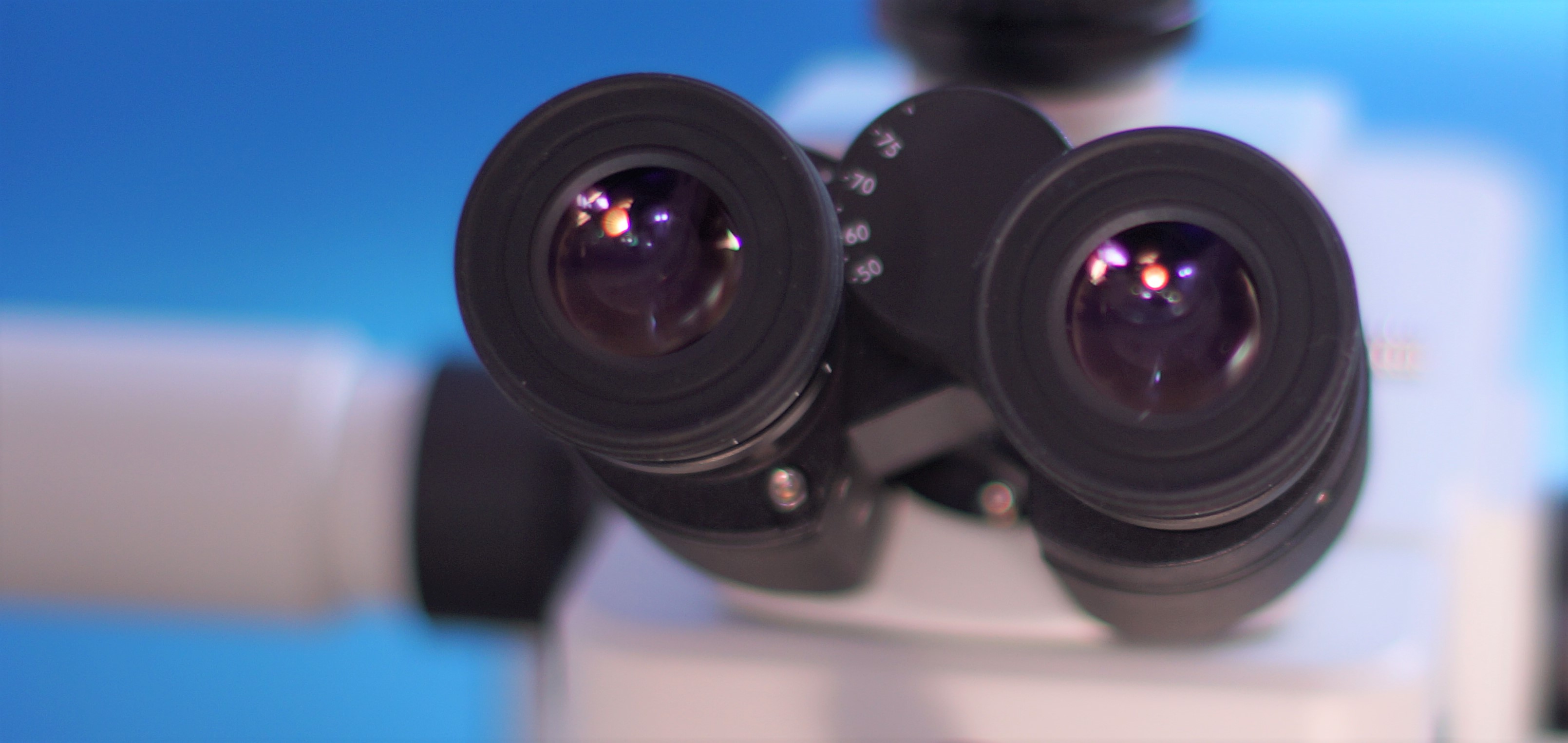

30Deg. inclined siedentopf binocular head; 360Deg. rotatable; interpupillary adjustable distance: 54-75mm; diopter +/-5 adjustable. 30Deg. inclined seidentopf trinocular head, splitting ratio R:T=50:50; 360Deg. rotatable; interpupillary adjustable distance: 54-75mm; diopter +/-5 adjustable. 30Deg. inclined seidentopf trinocular head (special for fluorescence), splitting ratio R:T=100:0 or 0:100; 360Deg. rotatable; interpupillary adjustable distance: 54-75mm; diopter +/-5 adjustable. 30Deg. inclined seidentopf Digital binocular head; 360Deg. rotatable; interpupillary adjustable distance: 54-75mm; diopter +/-5 adjustable. |
| Nosepiece | Revolving quadruple/ quintuple /Sextuple /septuple nosepiece/ |
| Body | Coaxial focus system with upper limited and tension adjustment; coarse range: 25/30mm; fine precision: 0.002mm; focus height adjustable. |

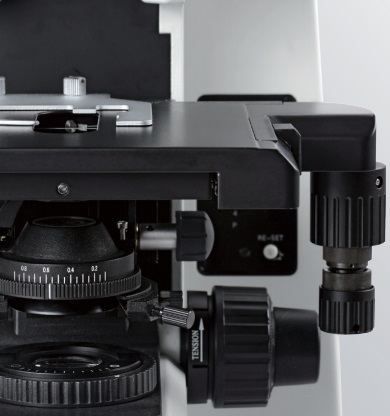

| Stage |
187x166mm double layer mechanical stage, moving range: 80x50mm, precision: 0.1mm. |
| Focus adjustment | Integrated all-metal high-pressure die-casting body, precision transmission mechanism with pinion and rack. Coarse focusing scope: 25/30mm, with tightness adjustment and place limit set, fine adjustable precision: 0.002mm |
| Condenser | N.A.0.9 swing-out type achromatic condenser,N.A.1.2/0.22 swing-out type achromatic condenser,N.A.1.25 quintuple phase contrast condenser,N.A.0.9 dry dark field condenser,N.A.1.25 oil dark field condenser. |

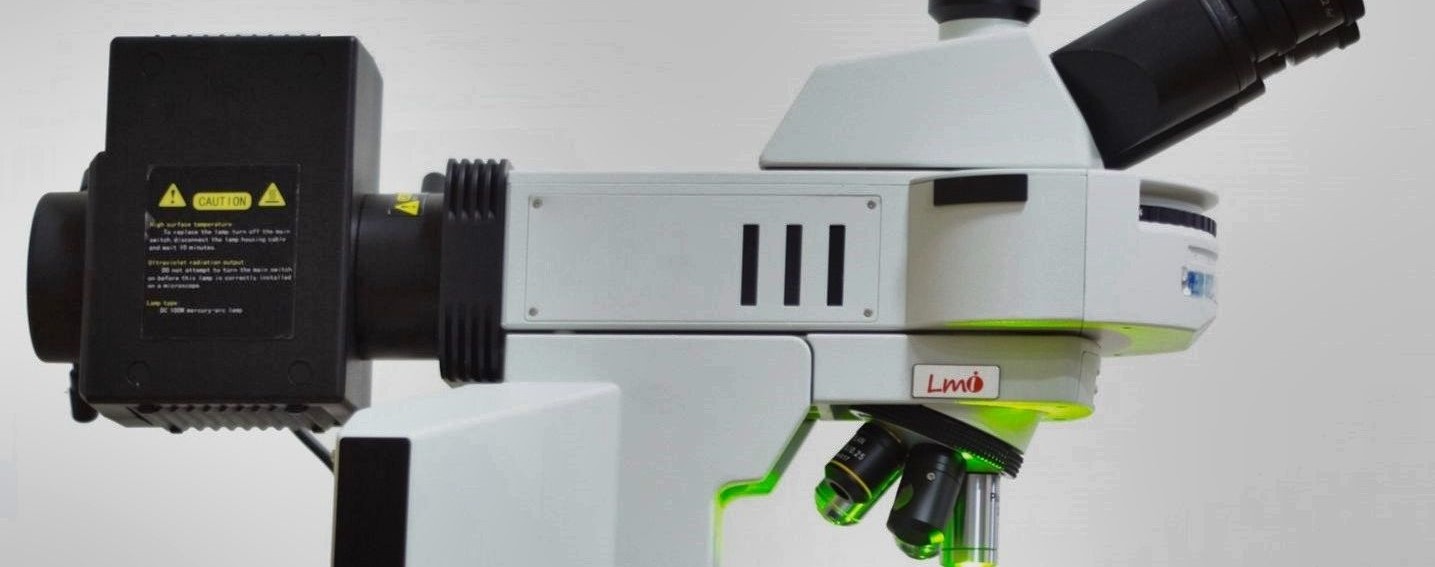

| LED fluorescent reflected illumination |
B4 LED fluorescence module dedicated for TB, with with intensity adjusting knob, and switch knob for bright field and fluorescence, central wavelength: 455mm B1 band-pass type fluorescence module, with intensity adjusting knob, and switch knob for bright field and fluorescence, central wavelength:470mm G1 band-pass type LED fluorescence module, with intensity adjusting knob, and switch knob for bright field and fluorescence, central wavelength: 560mm Other various LED module for option, which can be custom-tailor according to the needs of clinical diagnosis. |

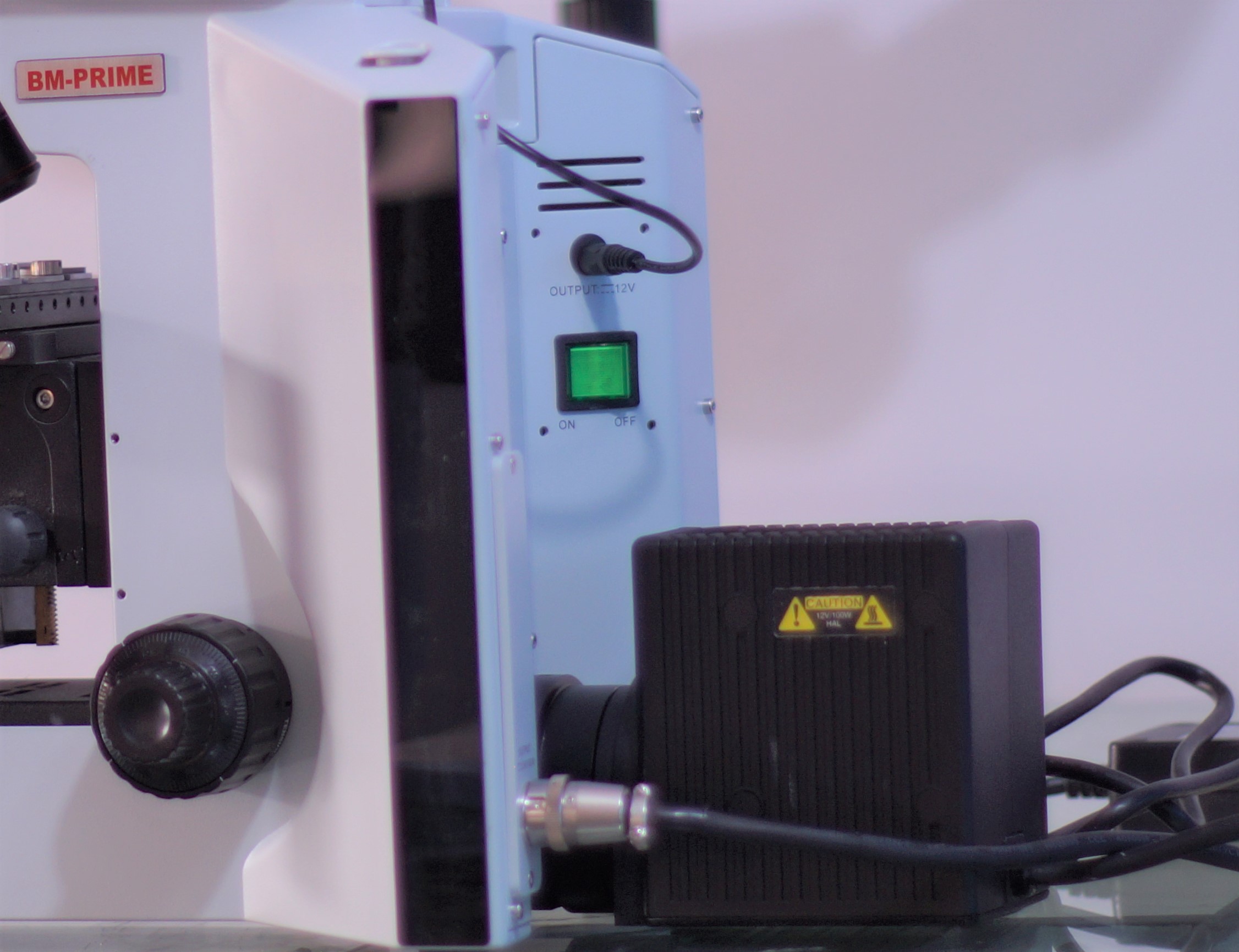

| Mercury reflected illumination |
|
| Transmitted illumination |
100V-240V_AC50/60Hz wide range voltage, 12V/100W halogen bulbs(predetermined filament center), intensity continuously adjustable |
| LMI - Polarizing kit | Analyzer 360Deg. rotatable; polarizer and analyzer can be out of light path. |
| Filter | Yellow, green, blue, neutral filter |
| External battery supply | Power supply for at least 8 hours, rechargeable |
| Light splitting device | R:T=70:30 or 100:0, special 1x CTV |
| Camera adapter | 0.5xCTV, 0.67xCTV, 1xCTV |

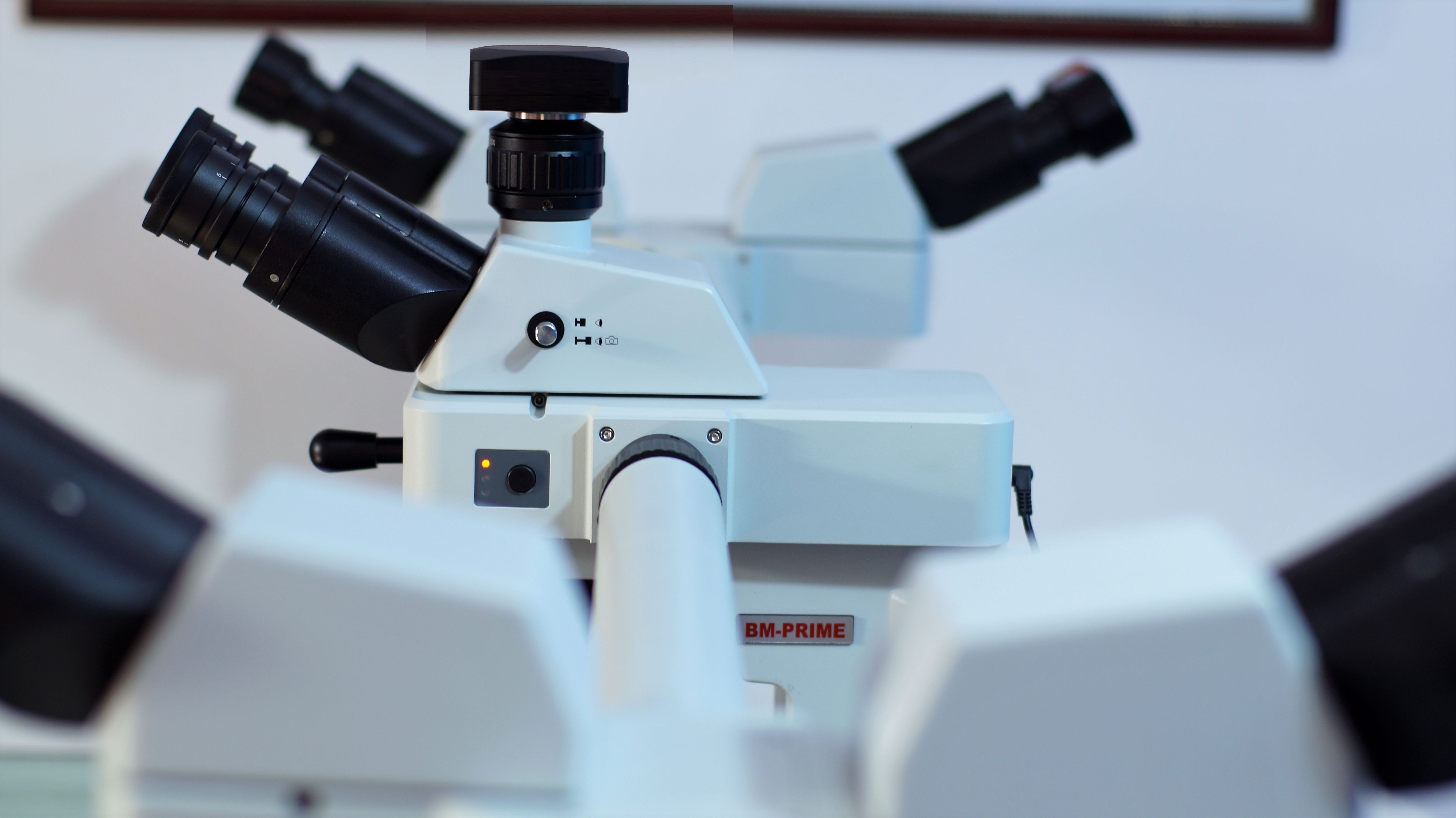

| Teaching Head Attachment | Dual Head: For Two person |
| Special Features |
Optional 12v/100 or 12v/150W |
