Research biological microscope
LMI BM-X

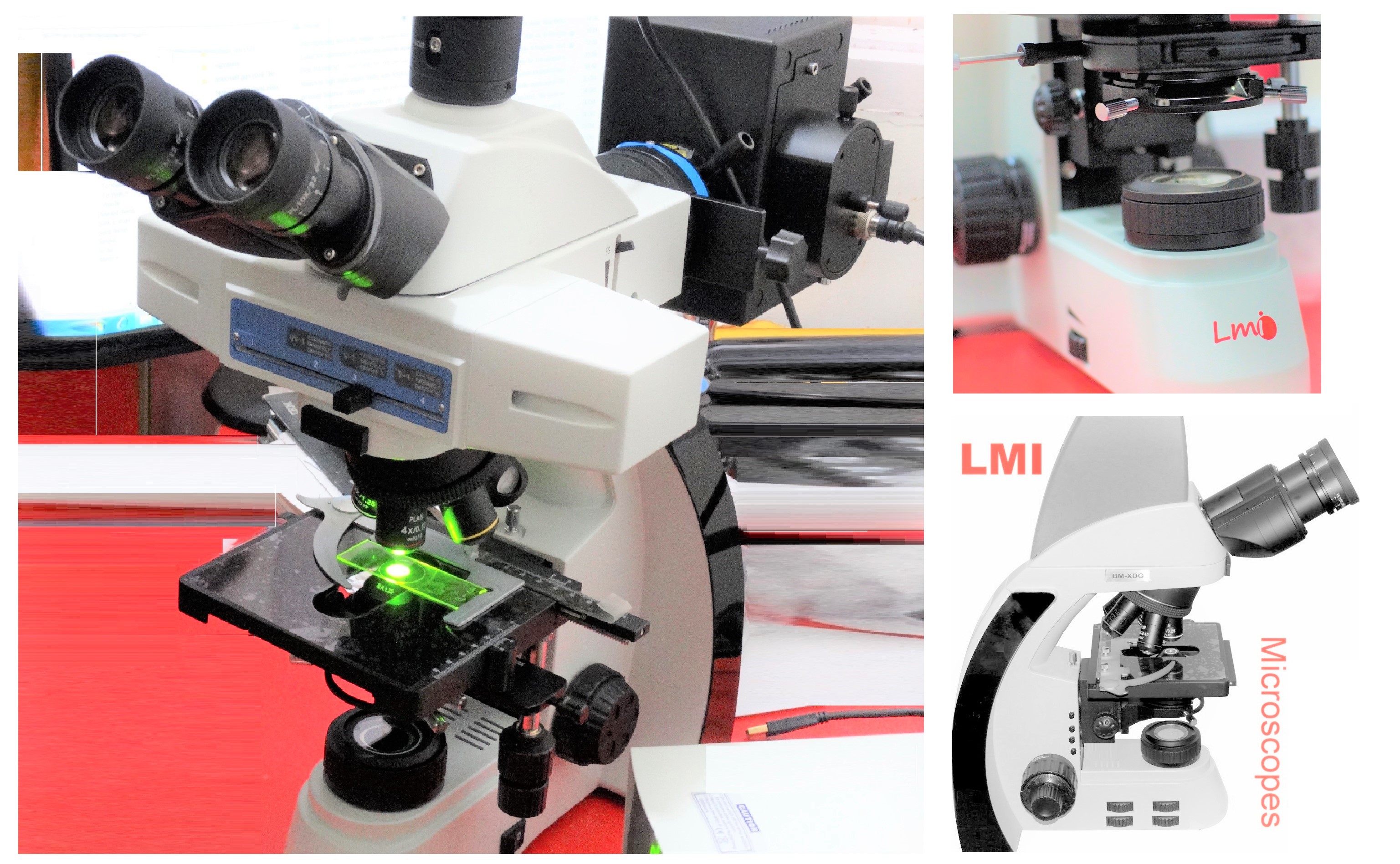

A stable, efficient microscope platform for teaching, laboratory research and networked multimedia microscopy, with a broad choice of observation techniques and digital configurations.
- Infinity-corrected, anti-fungal optical system
- Bright-field, phase-contrast, dark-field and polarization
- LED or mercury fluorescence configurations

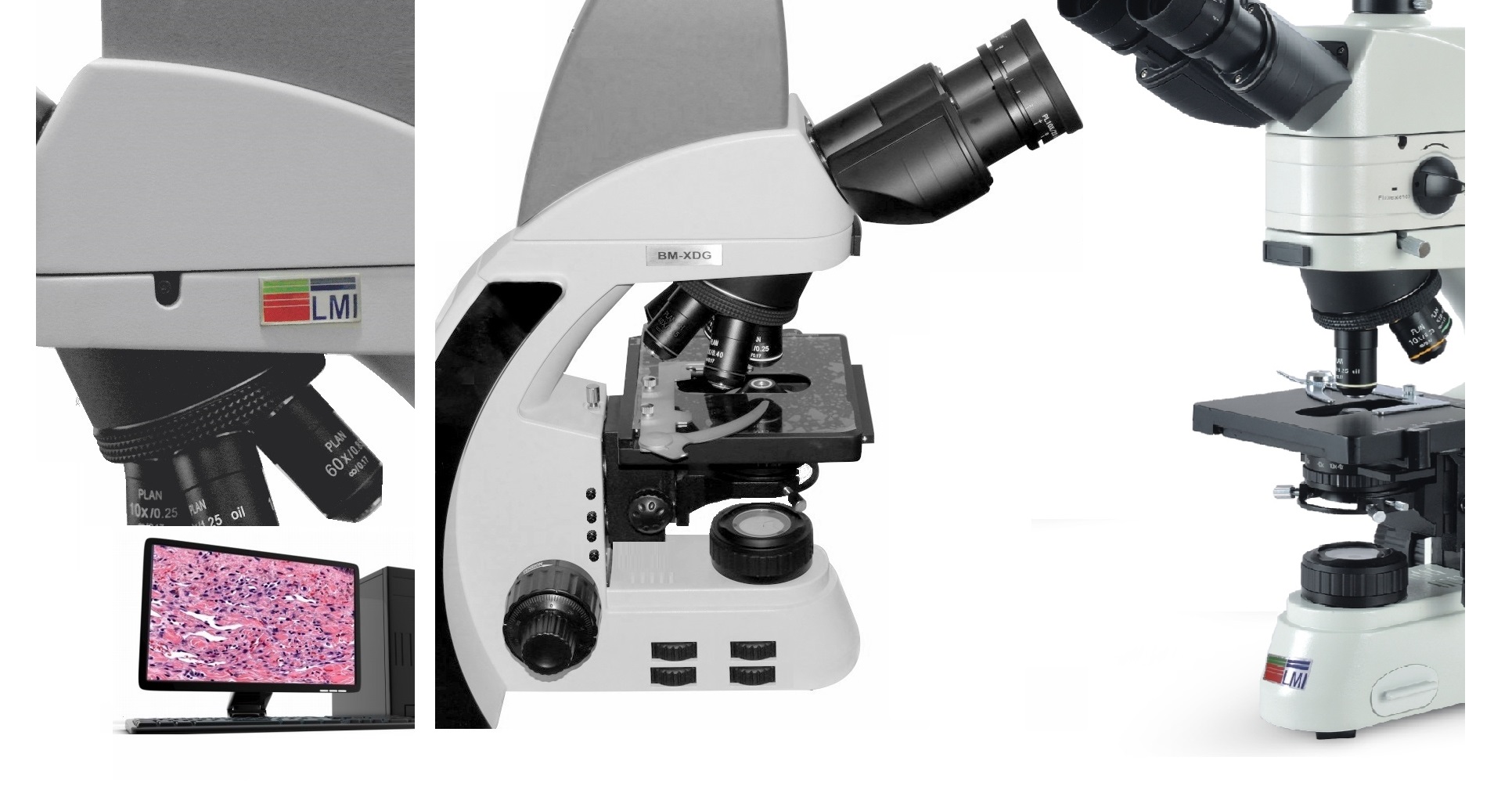

- Binocular, trinocular and integrated digital viewing heads
Technical information
BM-X specifications
Configure the BM-X for routine biological observation, teaching, phase contrast, fluorescence, dark field or digital imaging.
BM-X / BM-X Digital Series

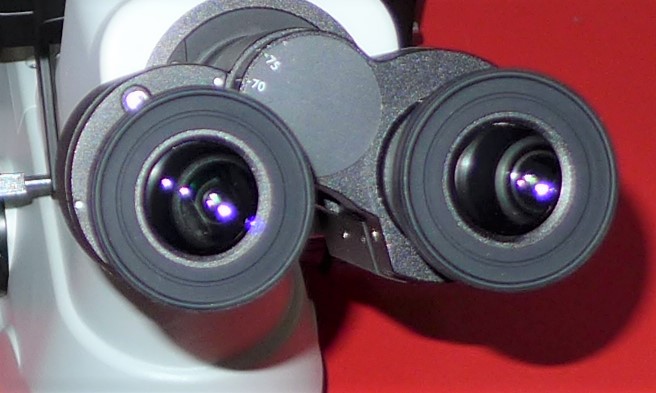

PL10X/20 mm high eye-point, wide-field plan eyepiece with 19 mm effective eye relief and ±5 diopter adjustment.
PL10X/22 mm high eye-point, wide-field plan eyepiece with 19 mm effective eye relief and ±5 diopter adjustment.

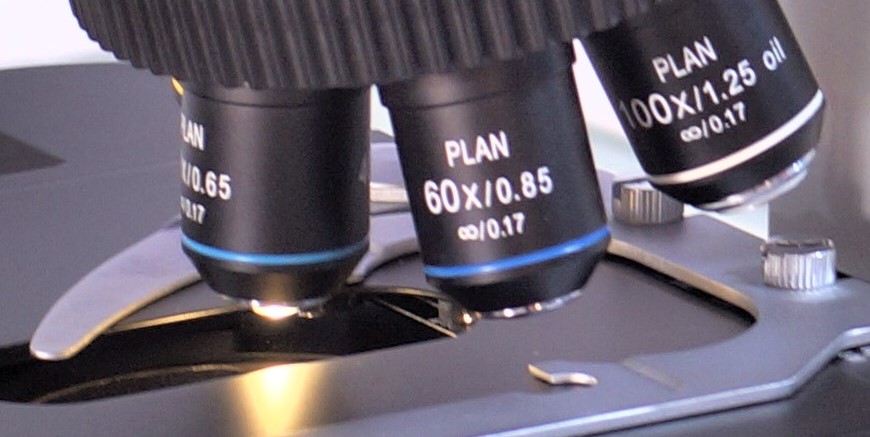

Infinity plan achromatic objectives: 4X, 10X, 20X, 40X, 60X and 100X.
Infinity phase-contrast objectives: 10X, 20X, 40X and 100X.
Infinity semi-apochromatic fluorescence objectives: 4X, 10X, 20X, 40X and 100X.

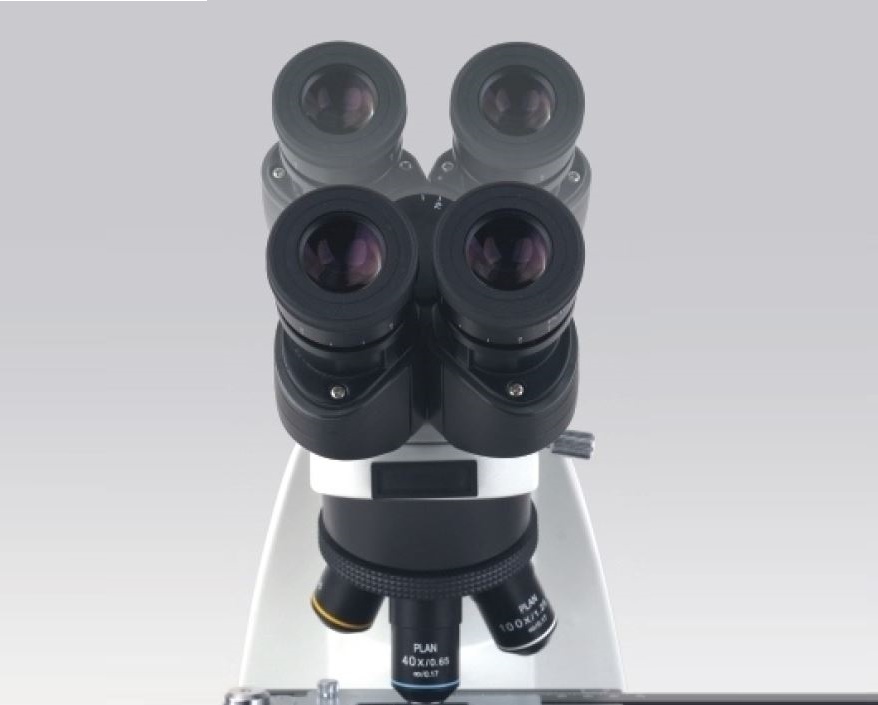

30° Siedentopf binocular head with 360° rotation and 50–75 mm interpupillary adjustment.
30° Siedentopf trinocular head with 360° rotation, 50–75 mm interpupillary adjustment and R:T 80:20 light split.

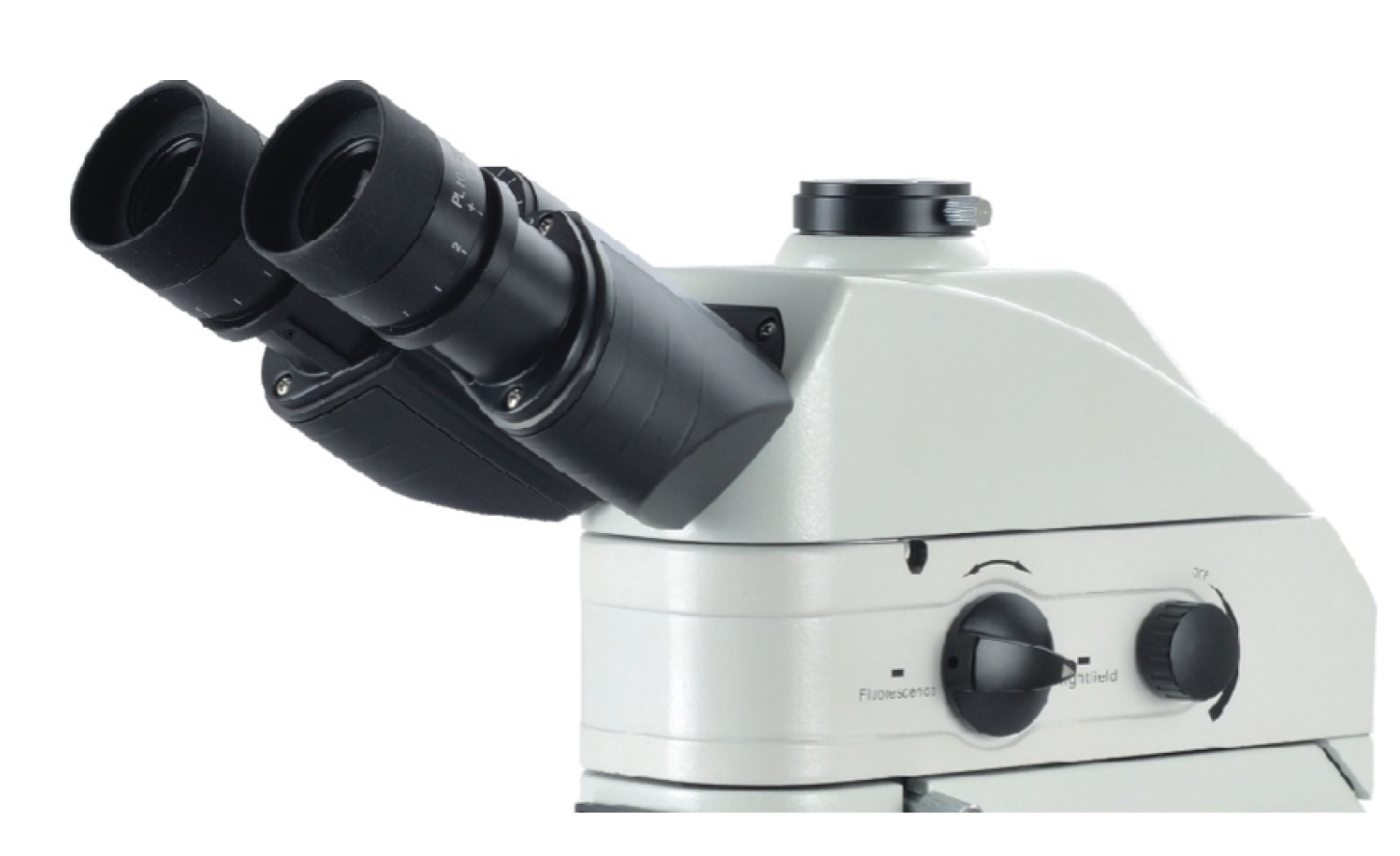

Dedicated fluorescence trinocular head with R:T 50:50 light split, or digital viewing head with 3 or 5 megapixel camera.

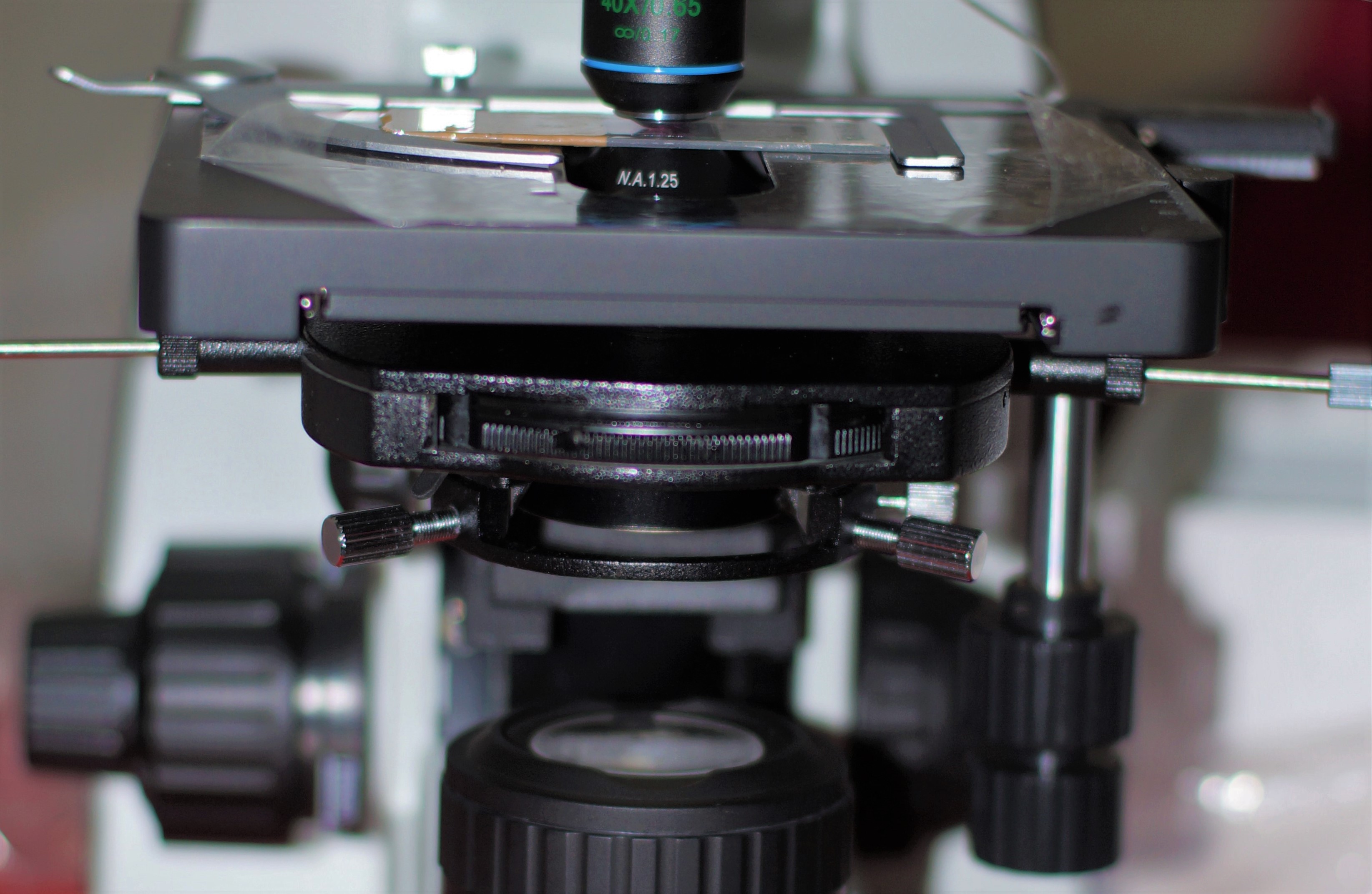

150 × 140 mm mechanical stage with low-position controls, 76 × 50 mm movement range, 0.1 mm precision and damping specimen clips.N.A. 1.25 Köhler condenser with sockets for phase-contrast and dark-field accessories.
N.A. 1.25 five-position universal phase-contrast condenser; N.A. 0.9 dry or N.A. 1.25 oil dark-field condenser.
UV2 long-pass module at 365 nm; B4 TB module at 455 nm; B1 band-pass module at 470 nm; G1 band-pass module at 560 nm.
Modules include intensity adjustment and bright-field/fluorescence switching. Additional wavelengths can be tailored to clinical requirements.

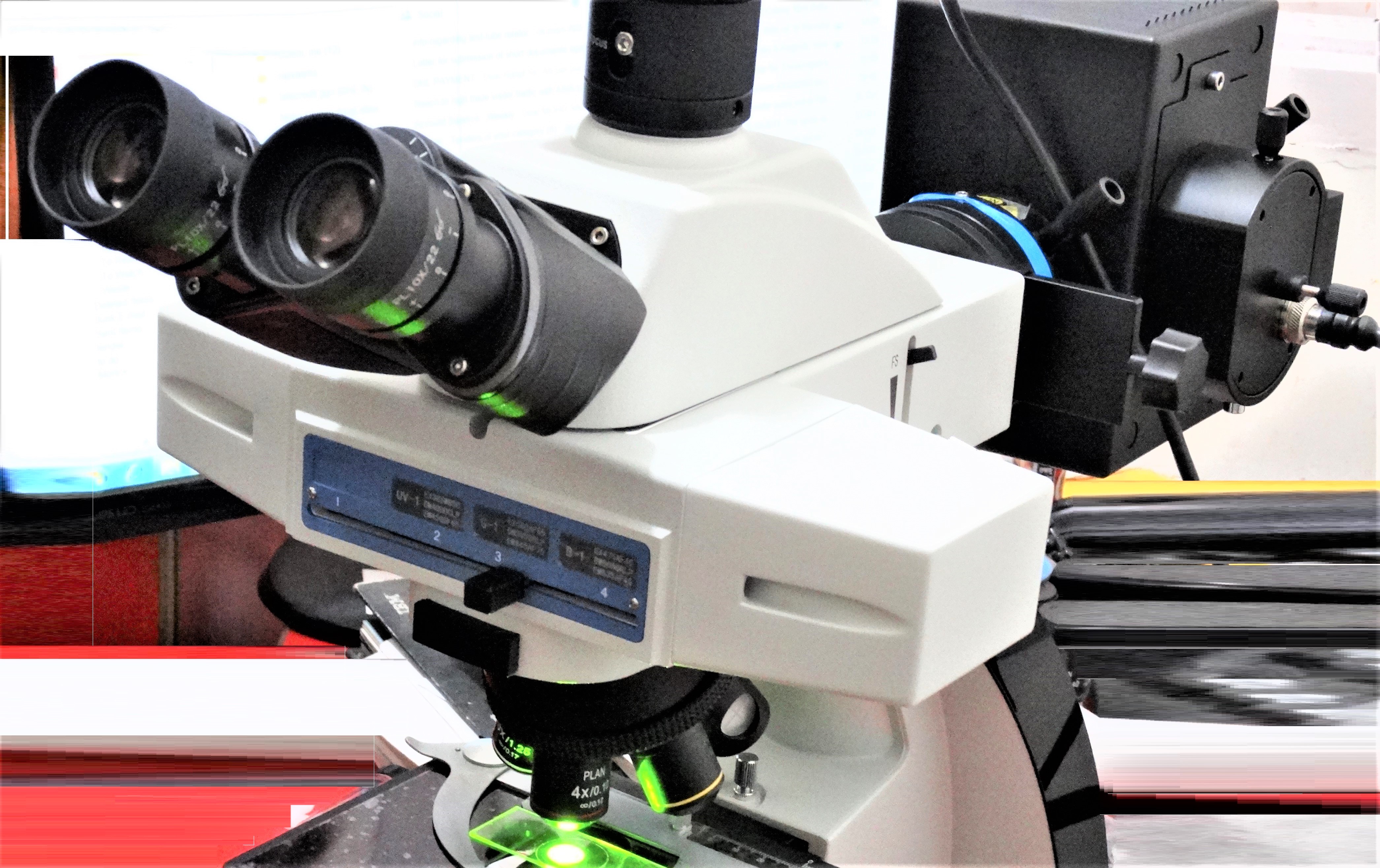

Reflected fluorescence illuminator with 100 W mercury lamp housing, 100 W DC mercury bulb, four filter blocks and DAPI, FITC and TRITC filters.100–240 V AC, 50/60 Hz input with 10 W or 15 W high-brightness LED and continuous intensity adjustment.
Optional 6 V / 30 W halogen bulb with preset filament centre and continuous intensity adjustment.

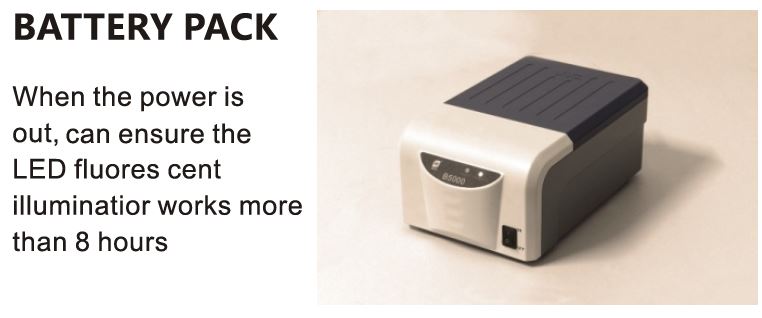

Rechargeable external power supply providing at least eight hours of operation.
