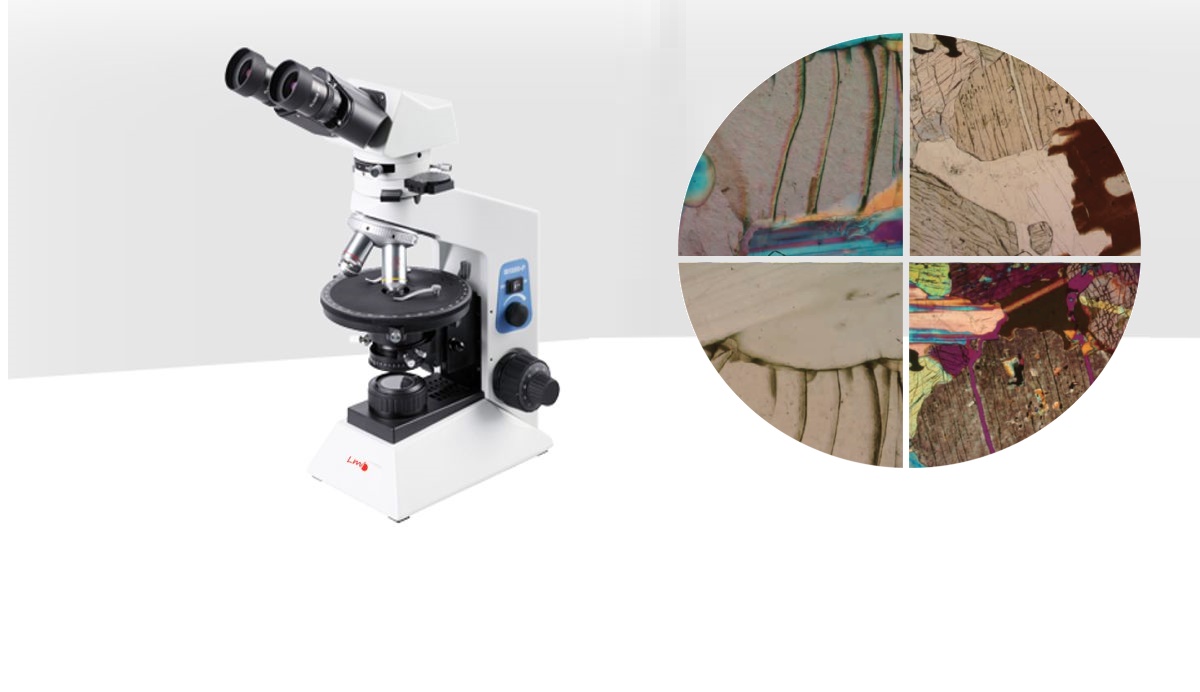

BM-150 POL Polarizing Microscope for Research

This series microscope is a universal-type polarizing microscope, designed for teaching and conventional using. Plan destressing objectives provide excellent image and high definition. Professional metal rotary stage, particularly craftwork,wear-resistant and resist ing corrode. Smooth rotating, comfortable operation, with locking device, very easy to use. Koehler illuminator systems, wide-range voltage, effectively protect and extend the life of bulbs. Bertrand lens using the handle rotating structure, circular focus, more convenient and simple operation, reliable performance. Widely used in component analysis and identification on on a variety of mineral specimens and sample slices under polarized light.

Optical system	Color corrected infinity optical system
Viewing head	Siedentopf type binocular head，30°inclined, 360° rotatable, inter-pupillary adjustment range:54mm to 75mm, diopter adjustment of range(±5mm) Siedentopf type trinocular head, fixed light split ratio, binocular:trinocular =80%:20% Siedentopf type digital viewing head
Eyepiece	High eyepoint wide field plan eyepiece PL10X/18、High eyepoint wide field plan eyepiece with reticle PL10X/18r High eyepoint wide field plan eyepiece PL10X/20 High eyepoint wide field plan eyepiece with gridding PL10X/18G High eyepoint wide field eyepiece PL15X/13 High eyepoint wide field eyepiece PL20X/10
Objective	Plan destressing objective 4X,10X,20X,40XS,60XS Achromatic objective 4X,10X,20X, 40XS,60XS
Nosepiece	Reversed quadruple nosepiece
Focus	Coaxial focus system with tension adjustable,coarse:28mm per rotation, Minimum reading 0.002mm
Stage:	Dia.160mm circular stage, 360°rotatable;1° increments a does value of vemier 6'; With locking devices Special metal composing particularly craftwork,wear-resistant and resisting corrode, with micrometer:0.01mm increments.
Illuminator	Koehler illumination: wide-range voltage 90-240V, 6V/20W halogen lamp precentered and with continuous intensity control Koehler illumination: wide-range voltage 90-240V, 3W single LED bulb, precentered and with continuous intensity control
Condenser	Koehler illuminator , destressing Abbe condenser N.A.1.25， adjustable center
Intermediate tube	Built-in analyser, 90° rotary and can shift out the optical way; Bertrand lens
Polarizer	360°rotatable，0，90，180，270 four type graduations
Analyser	360°rotatable，2° increments ，a does value of vemier 6'
Compensator	Gyps1λ (￠18mm, optical path difference 551nm) Mica1/4λ(￠18mm, optical path difference 147.3nm) Quartz Wedge(12X28mm, Ⅰ-Ⅳ)
Accessories	Stage mobile ruler 30*40mm
Filters : (yellow/blue/green/neutral)
Photo tube: (with PK mount)
3.2X photo eyepiece 0.35X/0.5X : C-mount adapter
Dark field sliders: (Used for 4X-40X objective under Koehler illumination)

Optical system

Color corrected infinity optical system

Viewing head

Siedentopf type binocular head，30°inclined, 360° rotatable, inter-pupillary adjustment range:54mm to 75mm, diopter adjustment of range(±5mm)
Siedentopf type trinocular head, fixed light split ratio, binocular:trinocular =80%:20%
Siedentopf type digital viewing head

Eyepiece

High eyepoint wide field plan eyepiece PL10X/18、High eyepoint wide field plan eyepiece with reticle PL10X/18r
High eyepoint wide field plan eyepiece PL10X/20
High eyepoint wide field plan eyepiece with gridding PL10X/18G
High eyepoint wide field eyepiece PL15X/13
High eyepoint wide field eyepiece PL20X/10

Objective

Plan destressing objective 4X,10X,20X,40XS,60XS
Achromatic objective 4X,10X,20X, 40XS,60XS

Nosepiece

Reversed quadruple nosepiece

Focus

Coaxial focus system with tension adjustable,coarse:28mm per rotation, Minimum reading 0.002mm

Stage:

Dia.160mm circular stage, 360°rotatable;1° increments
a does value of vemier 6'; With locking devices Special metal composing
particularly craftwork,wear-resistant and resisting corrode, with micrometer:0.01mm increments.

Illuminator

Koehler illumination: wide-range voltage 90-240V, 6V/20W halogen lamp precentered and with continuous intensity control
Koehler illumination: wide-range voltage 90-240V, 3W single LED bulb, precentered and with continuous intensity control

Condenser

Koehler illuminator , destressing Abbe condenser N.A.1.25， adjustable center

Intermediate tube

Built-in analyser, 90° rotary and can shift out the optical way; Bertrand lens

Polarizer

360°rotatable，0，90，180，270 four type graduations

Analyser

360°rotatable，2° increments ，a does value of vemier 6'

Compensator

Gyps1λ (￠18mm, optical path difference 551nm)
Mica1/4λ(￠18mm, optical path difference 147.3nm)
Quartz Wedge(12X28mm, Ⅰ-Ⅳ)

Accessories

Stage mobile ruler 30*40mm

Filters : (yellow/blue/green/neutral)

Photo tube: (with PK mount)

3.2X photo eyepiece
0.35X/0.5X : C-mount adapter

Dark field sliders: (Used for 4X-40X objective under Koehler illumination)
